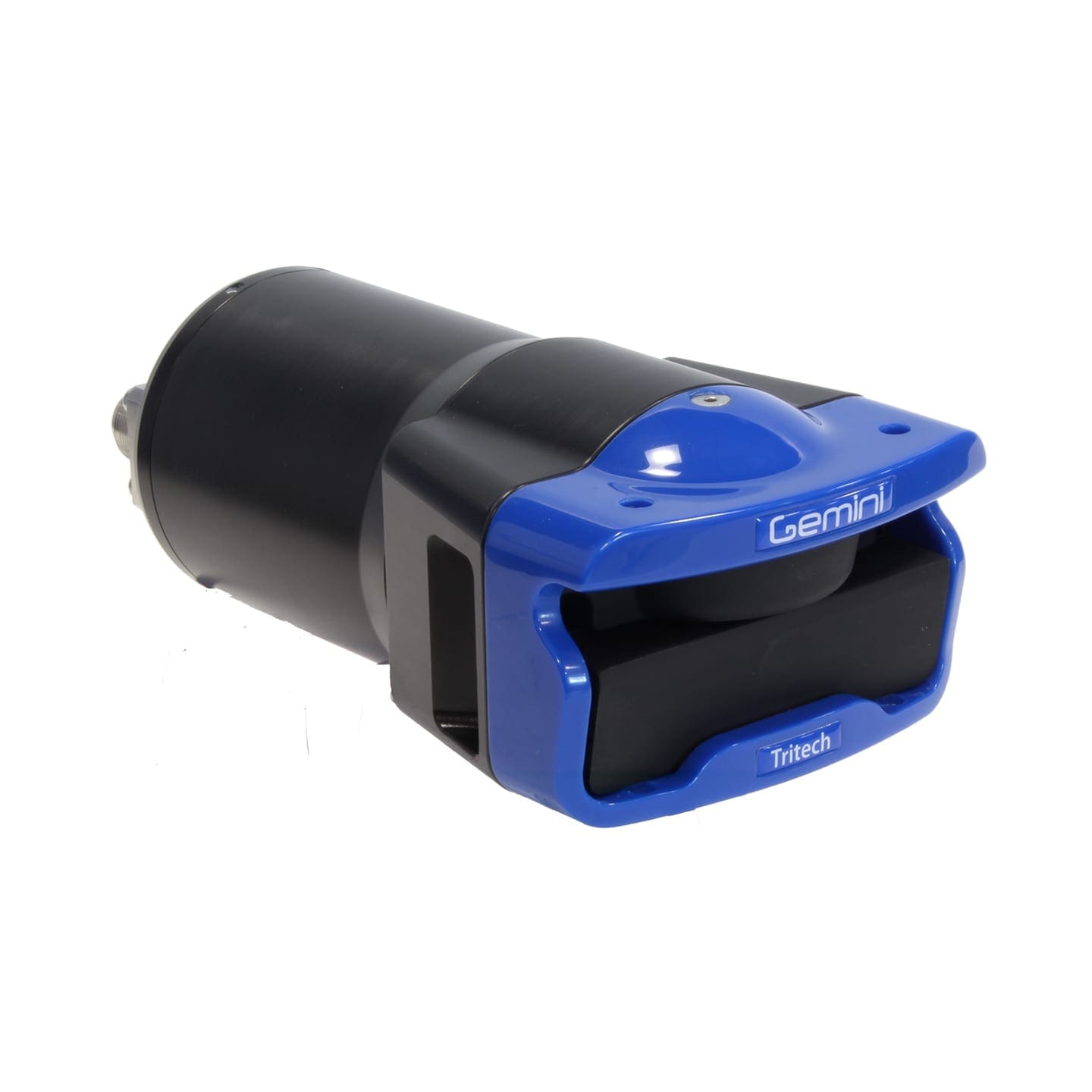

Tritech Gemini 720is Real-time Multibeam Imaging Sonar

Available for rental/ hire from Ashtead Technology - the Tritech Gemini 720is Real-time Multibeam Imaging Sonar.

Add to basket Enquire now Datasheet Download

Tritech’s Gemini multibeam imaging sonar provides users with real-time, crisp imagery for applications including obstacle avoidance, target detection and close-range inspection. Now with the latest electronics Tritech presents the next generation Gemini 720is imaging sonar.

With a 120 degree field of view (10 degree tilt) and a fast update rate of 30Hz, the Gemini 720is sonar is ideal for poor visibility environments. Gemini 720is features a 720 kHz operating frequency and an integrated sound velocity sensor to assist in providing the sharpest image possible, with accurate ranging. Redesigned for ease of install onto a variety of ROVs, AUVs and other underwater platforms, the Gemini 720is operates through Ethernet or VDSL communications.

  • Near field focusing
  • 8mm range resolution
  • Clear wide angle field of view
  • Suitable for low visiblity environments
  • Easier interpretation of sonar imagery
  • 720kHz operating frequency
  • CHIRP processing for high resolution imagery
  • Wide 120° eld of view
  • Real-time updates for video like imagery
  • Integrated velocimeter for accurate ranging
  • Ethernet or VDSL communications
  • Software Development Kit available
  • Software Development Kit available
  • SeeByte embedded target algorithm
  • ROV/AUV navigation
  • Obstacle avoidance
  • Target recognition
  • Search and Rescue (SAR)
  • Salvage operations
  • Salvage operations
  • Subsea monitoring and inspection
  • Object detection
