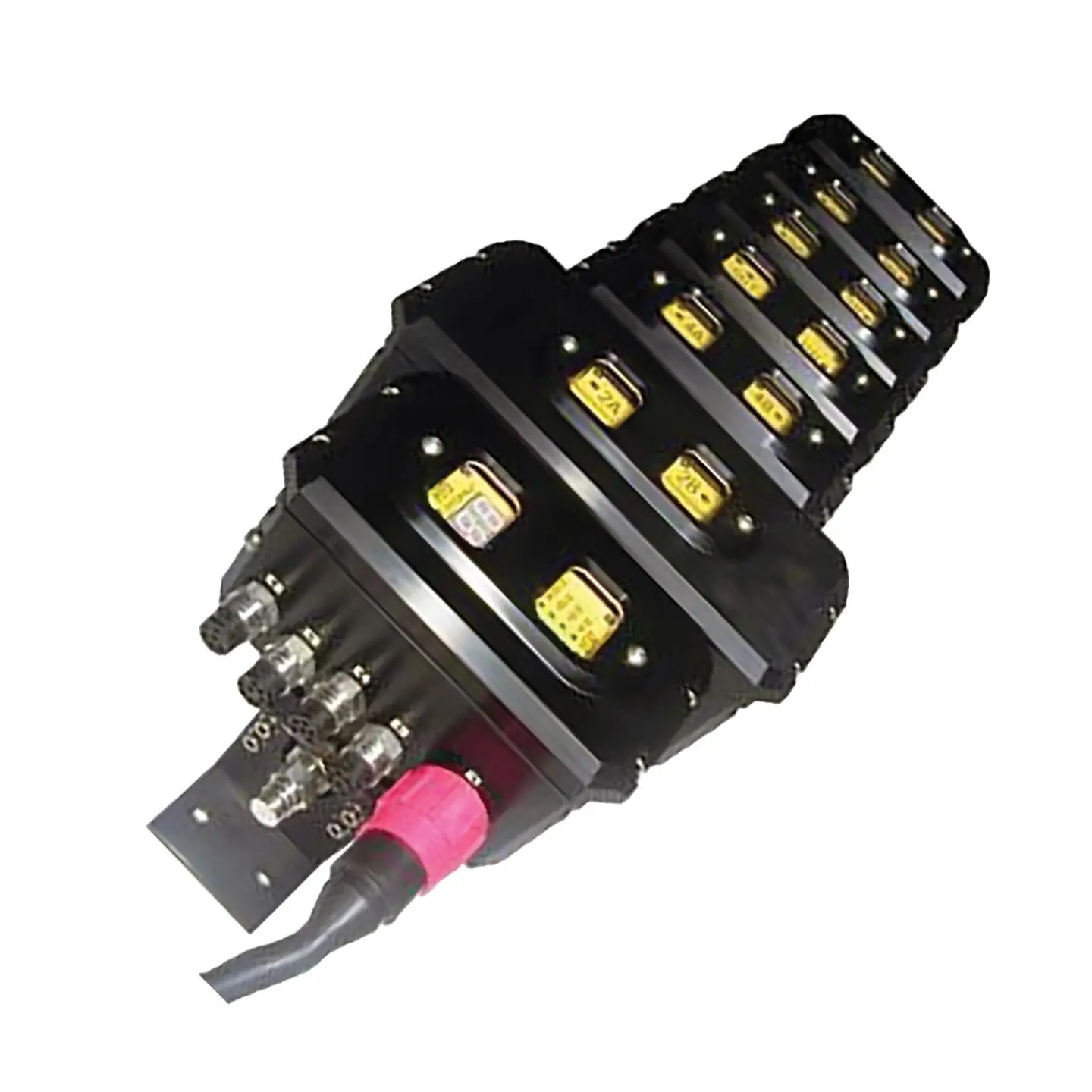

Fathom Intelligent Valve Pack (iVP)

Available for rental/hire from Ashtead Technology - the Fathom Intelligent Valve Pack (iVP).

Add to basket Enquire now Datasheet Download

The iVP is a field proven fully proportional intelligent valve pack using industry standard directional and pressure control valves.

It provides hydraulic control requirements for complex underwater systems including tooling skids, tracked vehicles, tether management systems and tool deployment units. The modular format allows for future system expansion if required. The fully integrated subsea unit is supplied with a dedicated PC operating Fathom Systems Windows® based control software.

The easy to use graphical user interface (GUI) guarantees that critical operations can be performed to the highest and safest levels. The control system is part of a family of integrated products that enable operator control commands to be expressed at a remote location and data to be collected and transmitted for display or storage at the surface PC. The system can be configured in a number of ways to suit the user’s requirements and existing power and communication infrastructure.

  • Modular intelligent valve pack
  • Proportional control throughout
  • Cost effective field proven technology
  • 1 to 12 functions – expandable, flexible
  • Embedded processor for instant start-up
  • Software configurable
  • External sensor capability
  • Single channel video overlay
  • Integrated comms link
  • Fully self-contained system
  • Torque tool control operations
