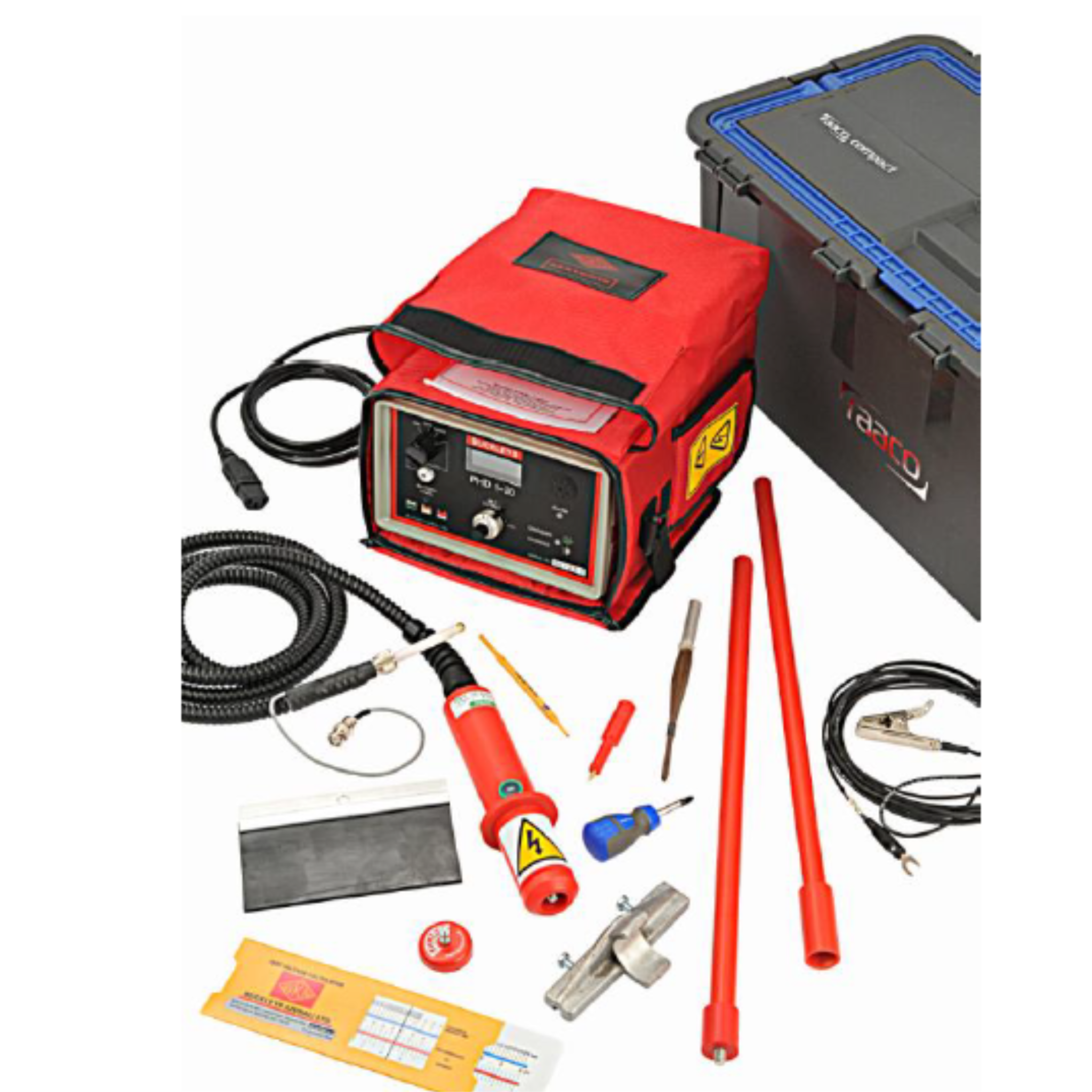

Buckleys PHD 1-20 Pinhole Holiday Detector

Available for rental/hire from Ashtead Technology - the Buckleys PHD 1-20 Pinhole Holiday Detector.

Add to basket Enquire now Datasheet Download

The Buckleys PHD 1-20 is a Pinhole / Holiday Detector suitable for quick, accurate and effective inspections of porosity, pinholes and other faults in a wide range of non-conductive coatings and linings.
Designed for checking coating thicknesses of between 20 microns to 6.5mm, the Buckleys PHD 1-20 is suitable for use in a number of industries including petro-chemical, aerospace, pipeline construction and plastic fabrication.
Portable with audible and visual alarms, the Buckleys PHD 1-20 can operate for up to 10 hours.

  • Clear 3½ digit LCD display of test voltage
  • Audible and visual alarm fault indicators
  • Calibration Certificate to National Standards supplied
  • Power limited output for operator safety
  • Safety Switch incorporated in handle
  • Built-in Charger Unit
  • Lightweight and portable
  • Variable sensitivity for testing on concrete substrates or moist surfaces
  • Full range of electrodes available
  • One year “back-to-base” warranty
  • CE approved
